Digital Radio PH690

 Back to shop

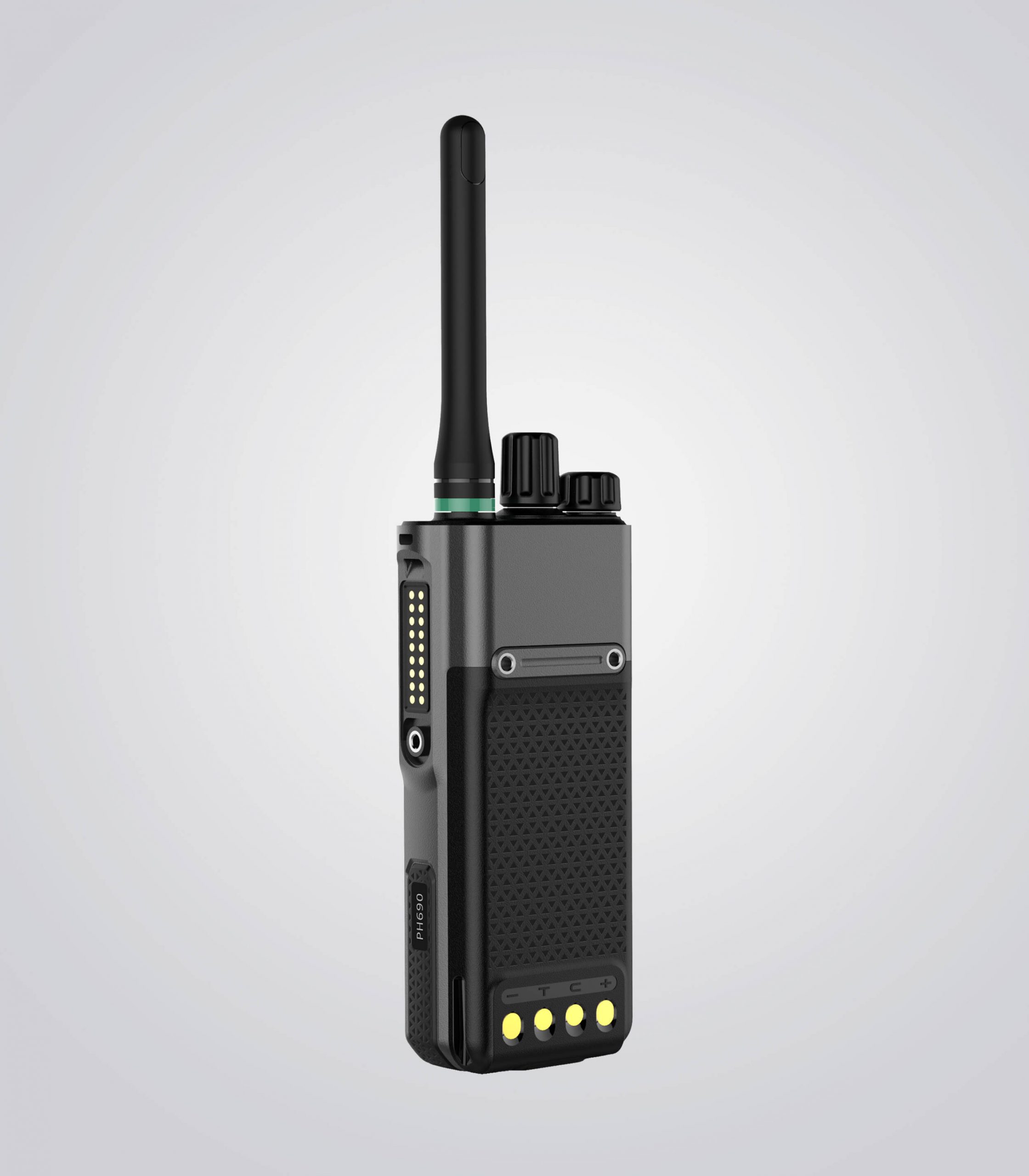

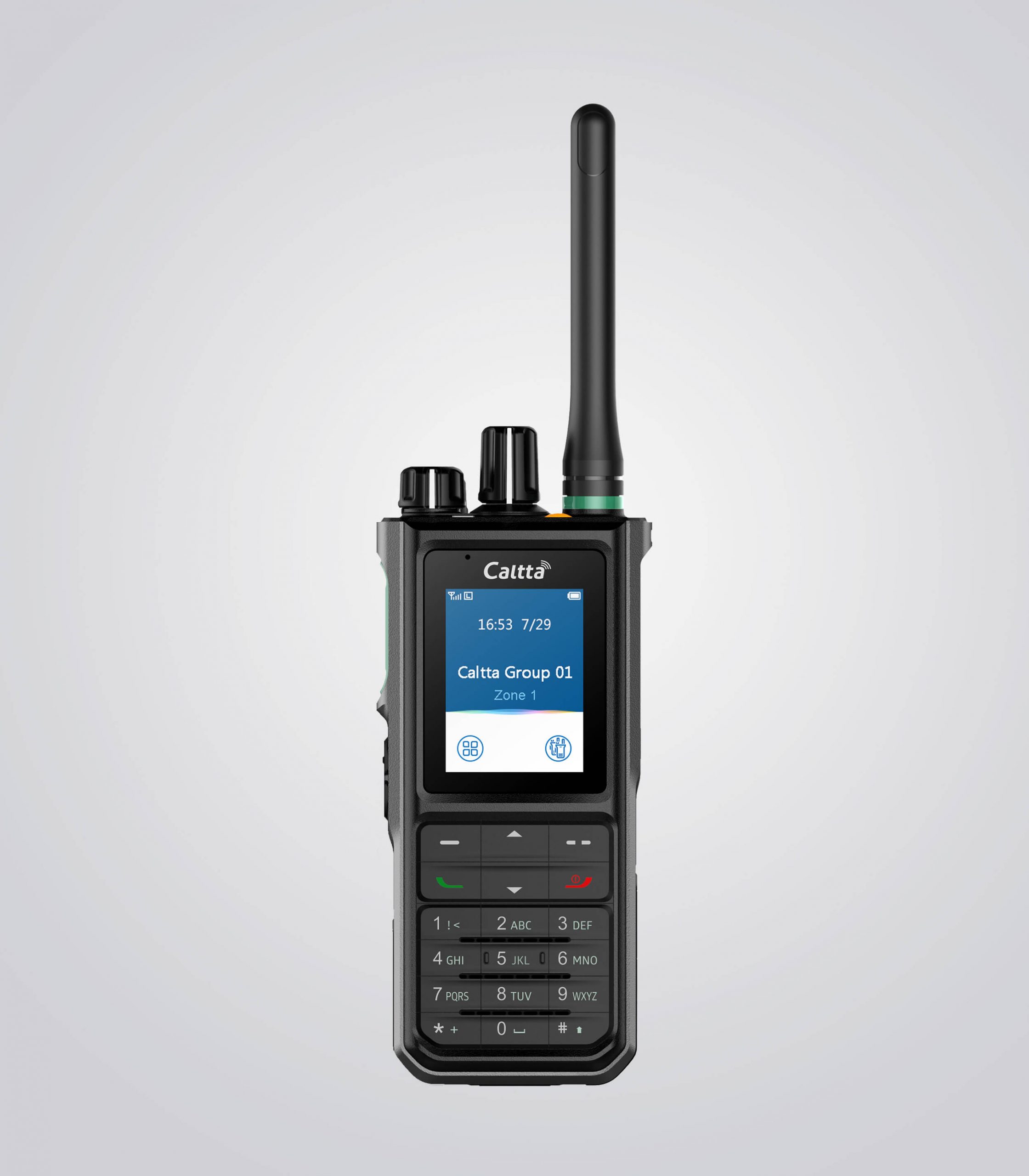

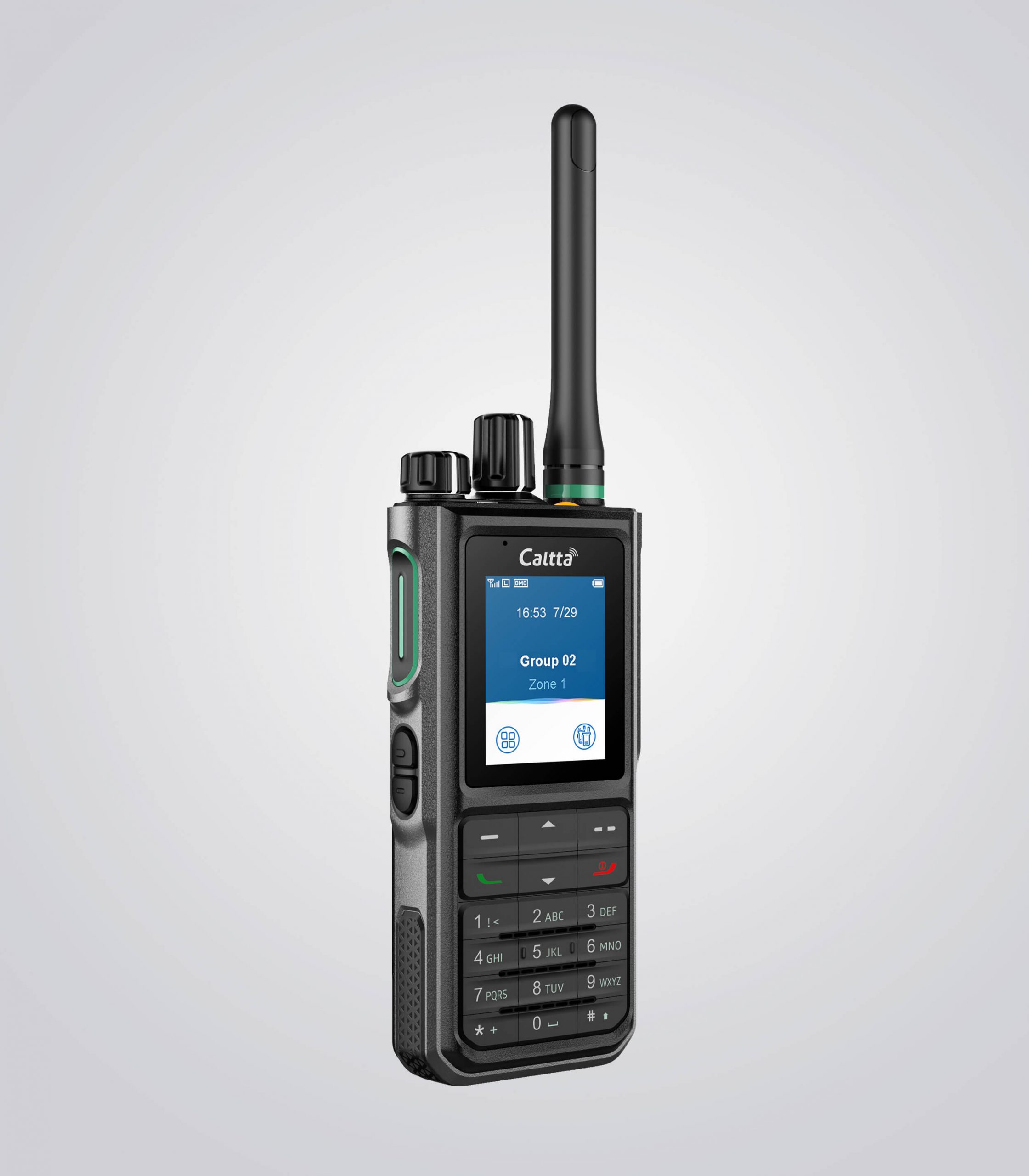

Digital Radio PH690

Supports DMR Tier2
Provides high quality voice service. It responses the call of professional users anywhere and anytime. DMR’s dual slot provides double channel capacity, thus can easing the shortage of frequency.

True 2 Slots
PH690 can support 2 slots in DMO that double the Capacity of communication. And it also support roaming in IP repeaters’ network.

Loud and Clear Sound
With carefully optimized audio design, combined excellent audio encoder, it provides loud and clear sound.

Large Capacity Battery
With 2000mAh battery and power saving of DMR, battery life is long enough for professional communication.

Excellent Man-Machine Interface Design
Based on professional user habits, simple MMI is developed.It helps the professional users to operate radio more comfortably.

Abundant Configuration
PH690 supports TF card, GPS, Bluetooth, man-down, real-time clock, vibration, geomagnetic, optional board and so on.

Higher Safety
The DMR standard provides higher safety and reliability for voice and data than analog standard.

Reliable Quality
Meets IP68 standard, and is suitable for outdoor work. Shock, vibration, solar radiation and other indexes meet the MIL-STD-810. It qualifies for all kinds of severe working environment.

SKU: PH690 Category: Portable
  • Specification
  • Accessories
  • Downloads

Description

Digital Protocol ETSI TS 102 361-1,-2,-3 (-4 is optional)
Frequency UHF1: 400-470MHz
Channel Capacity 1024
Zone Capacity 64
Channel Spacing 12.5kHz/20KHz/25KHz
Frequency Stability ±0.5ppm
Operating Voltage 7.4V
Battery Capacity 2000mAh (Standard) / 3200mAh (Optional)
Battery Life(5:5:90) Analog: 14 hours

Digital: 18hours

Size (H×W×D) 126×54.5×32mm
Weight About 290g (With Antenna and Battery)
Screen 2.0’ Transflective LCD, 240×320, 6 Lines Text
Vocoder AMBE++
Bluetooth Support BT2.1+EDR/4.0
Location GPS/BDS
Man down Support
Vibration Support
TF Card Support
Real-time Clock Support
Geomagnetic Support
Optional Board Support
Encryption Support SW and HW Encryption ( Optional )

Accessories

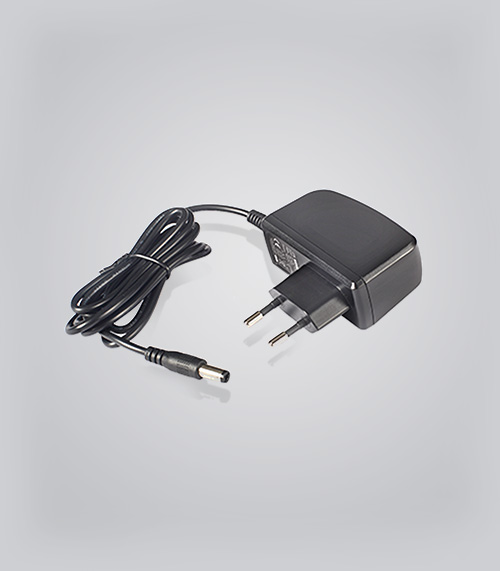

  • Power Adaptor

    Read more

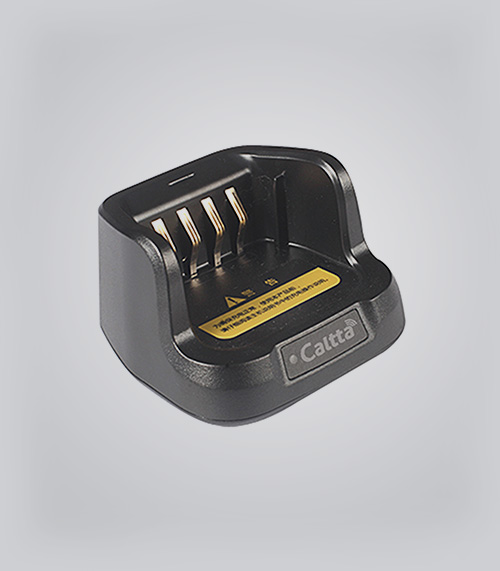

  • Charger

    Read more

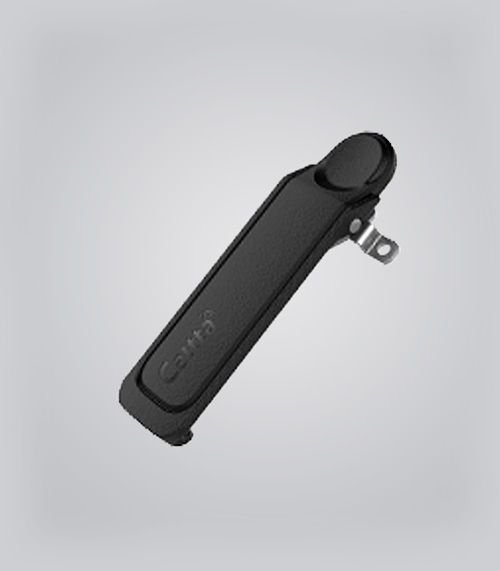

  • Belt Clip

    Read more

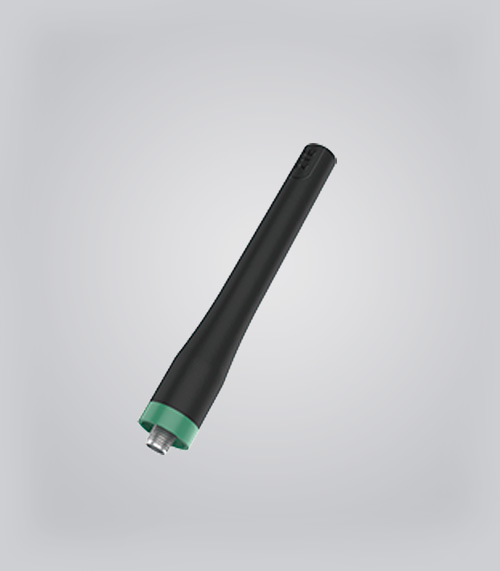

  • Antenna

    Read more

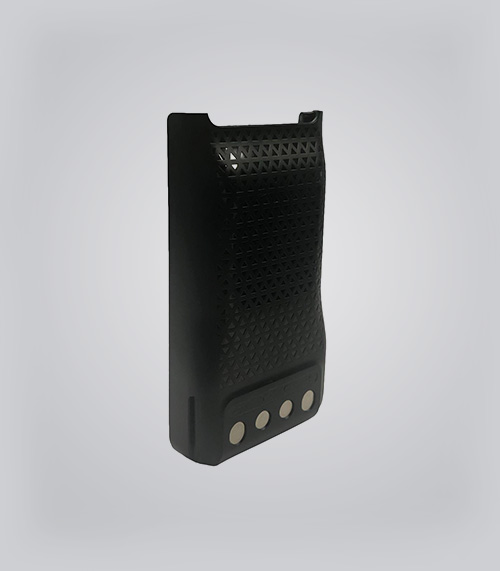

  • 2600mAh Battery

    Read more

Downloads


Download PH690 DMR Portable Radio PDF
