DMR System Server eTC 10

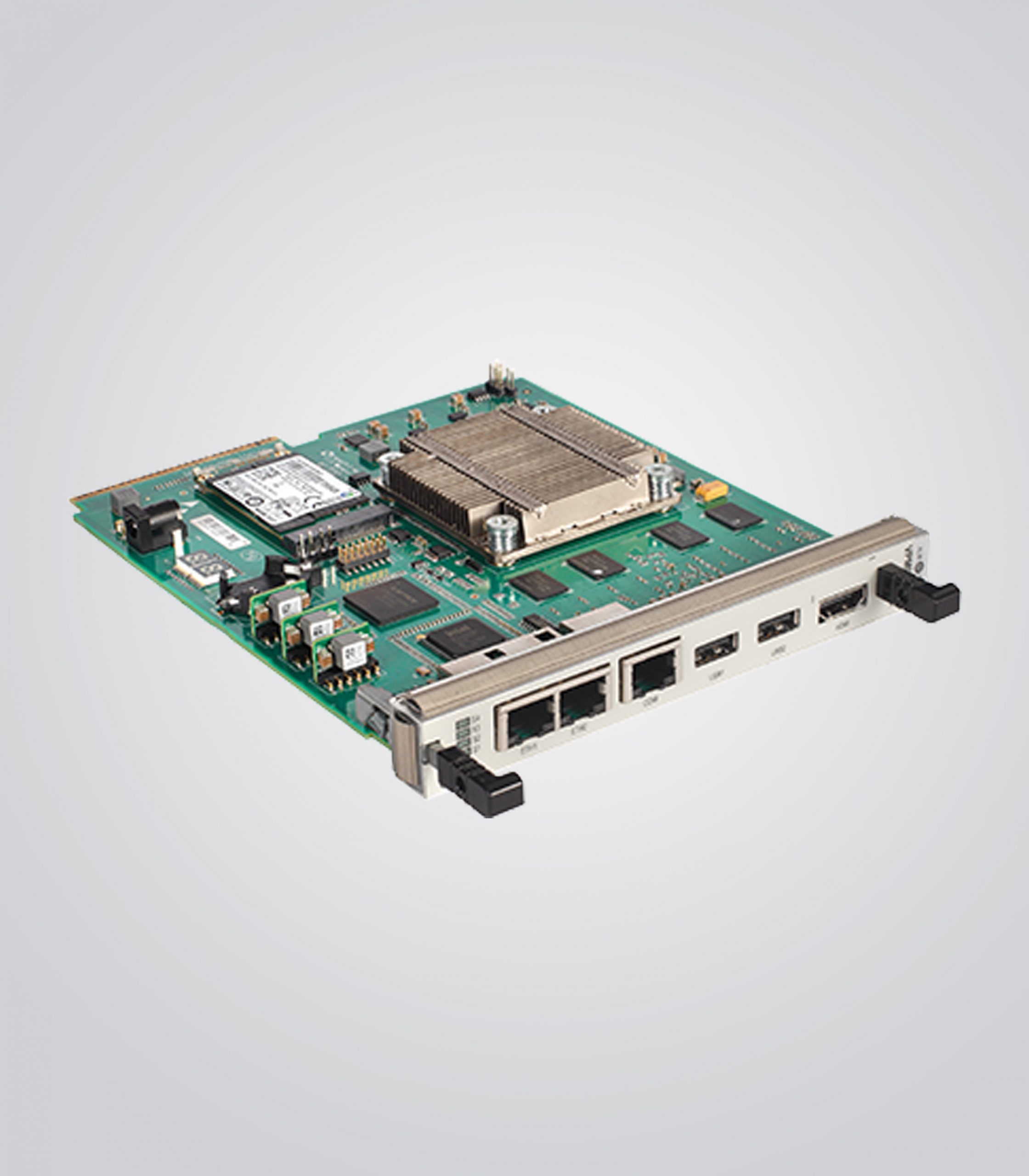

The DMR ZXTS eTC 10 is based on the VPM0 board and is integrated into the ZXSDR B8200 chassis.

  • Easy to deploy
  • Completely independent intellectual property rights
  • Open interfaces
  • Optimized signaling and data links specially designed for trunking services
  • High-performance network processors (dedicated data forwarding engines)
  • Hardware support for fast data query and forwarding
  • High-speed internal data forwarding bus
  • Support disaster recovery backup, system with high reliability
SKU: eTC 10 Category:

Description

Dimensions(H×W×D) 20mm×150mm×180 mm
Weight 0.2kg
Power supply mode Backplane power supply
CPU I5-4300U dual core 1.9G 4 thread 64bit instruction set
Memory DDR3 8G
Graphics card Intel HD Graphics 4400, graphics memory 1.7G, graphics output eDP/DPHDMI
Maximum resolution: 3280×2000@60HZ (HDMI1.4)/3200×2000@60HZ(DP)
Support Direct×12/OpenGL 4.3
Hard disk 256G SSD solid state drive
Operating system 64-bit Linux operating system
Maximum number of fleet 1
Maximum number of subscribers 2000
Maximum number of groups 255
Total number of members in all groups 10000
Maximum number of base stations 16
Maximum number of dispatchers 10
Maximum number of OMM clients 5
Supported PSTN / PABX (line/ gateway) 30 (1×E1)
Call setup delay ＜300 ms
Voice delay ＜350 ms
